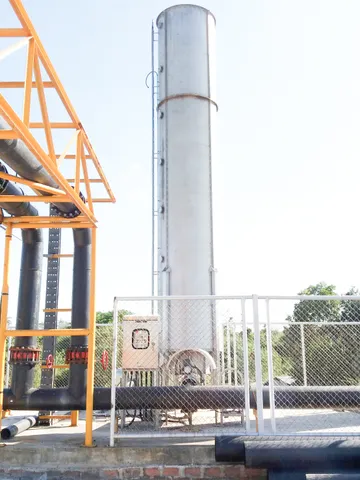

ENCLOSEGASFLARE(1)

ENCLOSE FLARE

Weatherproof, High Safety Standard & High Methane Destruction Efficiency

Model

Capacity
(Nm3/hr)

Height

(M)*

Working Pressure

(mber)

voltage

NS100-EN

100

4.5

30-250

380V AC

NS250- EN

250

6.3

50-250

380V AC

NS500- EN

500

7.5

50-250

380V AC

NS750- EN

750

8.7

50-250

380V AC

NS1000- EN

1,000

8.7

50-250

380V AC

NS1250- EN

1,200

9.2

50-250

380V AC

NS1500- EN

1,500

9.9

50-250

380V AC

NS2000- EN

2,000

11.6

50-250

380V AC

NS2500- EN

2,500

13

50-250

380V AC

NS3000- EN

3,000

16.7

50-250

380V AC

* It may change depending on the gas consumption on the customer site.

SPECIFICATION

Type

Automatic Enclosed Biogas Flare

Flare Fuel

Biogas -50-60% Methane (+60% optional)

Shut-Off Device

Stainless steel solenoid valve or actuator valve

Flame-Arrester Type

End of line flame arrester

Methane Destruction

90%

Flame Detector

UV flame detector

Ignition System

7,500 Volt European standard ignition transformer

Backfire Prevention

Stainless steel end-of-line flame arrester European

Standard Design & Test (EN 12874)

Thermocouple

Type N

Fluegas Temperature

500*C - 750 C

Flare Materials

Stainless Steel enclosure w/fiber insulation

Stainless Steel biogas piping

Optional Items

Data logger

Lightening arrester

Biogas blower

Biogas water separator

Biogas filter

Inline flame arrester(s)

Biogas regulator

Flow meter

UPS for actuator

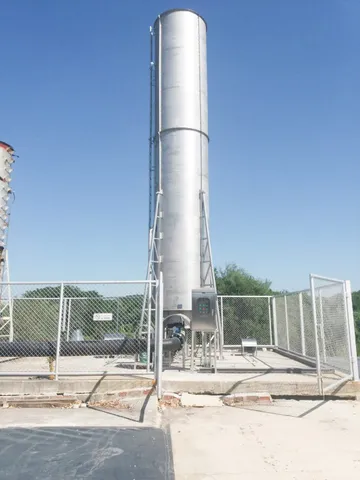

ENCLOSEGASFLARE(2)

ENCLOSE-GAS-FLARE-(3)

CONTROL PANEL
  • Weatherproof stainless steel control panel IP65
  • Full alarm and automatic safety functions
  • Sophisticated design but easily accessible
  • Adaptable for remote control functions

    • NAPATR SERVICE's arrangement

    Client's preparation

  • Biogas Flare Components Consist of
  • Control panel at flare
  • Pilot burner
  • Flame arrester
  • Biogas solenoid valve or actuator valve
  • Pressure switch
  • Pilot solenoid valve
  • Pressure gauge
  • Stainless steel piping and fittings
  • Fabrication, installation and construction
  • supervision ( if necessary ).
  • System commissioning and training.
  • Maintenance and Operation manuals.
  • 1-Year Warranty
  • (Extended service contracts available)

    • 1.  Concrete foundation.

    2. Biogas supply to flare at 50-250 mbar

    ( If over specify range, client should be inform to

    consult the appropriate plan with Napatr engineering team.)

    3. Electrical wirng from NAPATR circuit component

    to control panel following NAPATR diagram.

    4.  Temperature recorder and other instrument

    excluding specified on scope of work notation.

    5. LPG cylinder for alternative ignition in contingen

    cy of low quality biogas conditions.
